what is thermally broken aluminum windows？

Poor energy performance and constant condensation? That noisy street driving you mad? Thermal break aluminum windows could be the solution you didn’t know your building needed.

Thermally broken aluminum windows are advanced window systems with an insulating barrier—usually polyamide or polyurethane—between the inner and outer frames, drastically reducing heat loss, condensation, and noise.

If you’ve ever struggled with a cold, wet window frame or spiraling energy bills, you’ll want to keep reading. Understanding thermal break technology could transform the comfort, efficiency, and value of your property.

What are thermally broken aluminum windows?

Struggling with drafty windows or clammy aluminum frames on cold mornings? That’s the old school—let’s talk about what brings real comfort and performance.

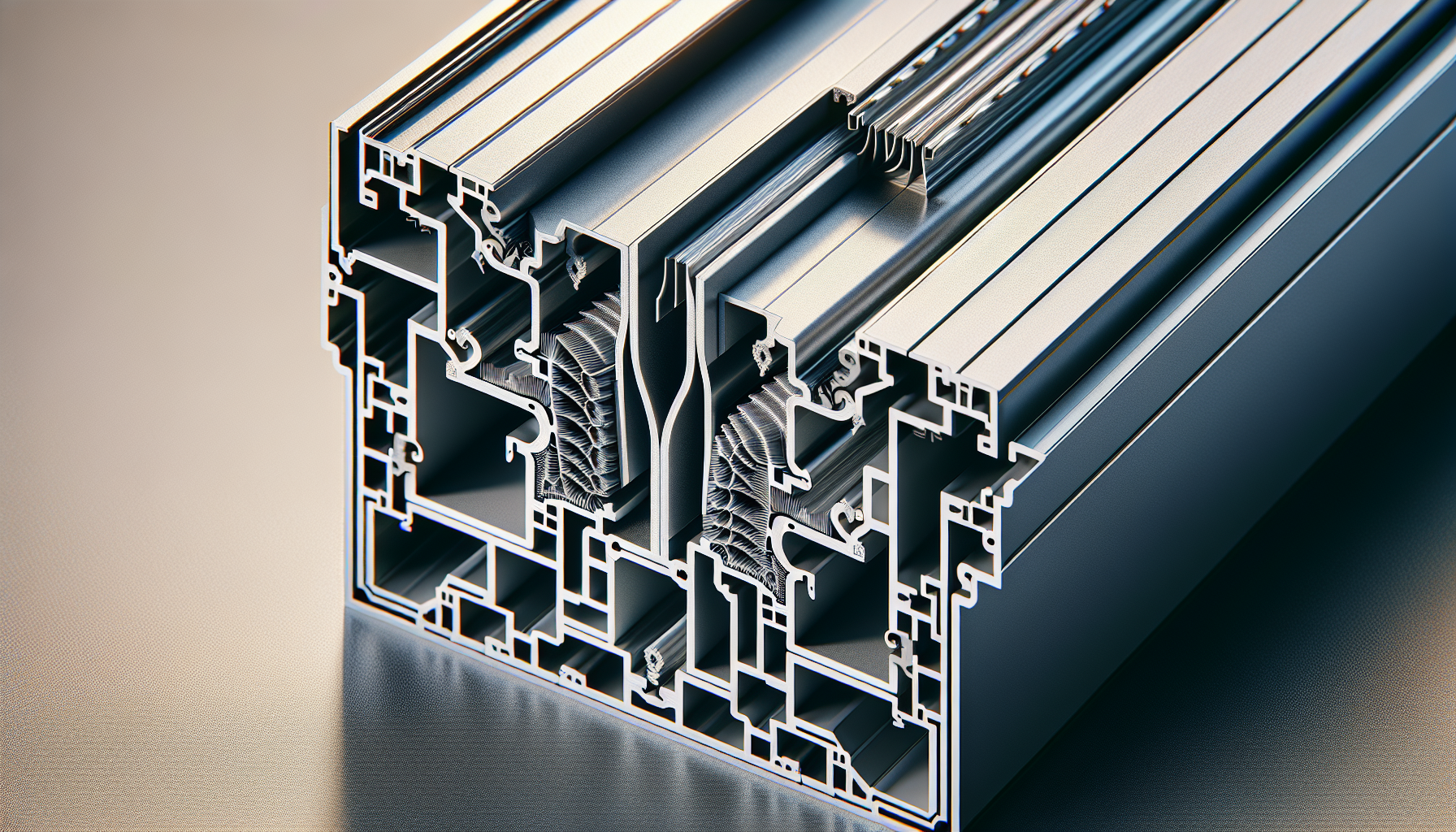

Thermally broken aluminum windows have an insulating strip—typically polyamide or polyurethane—separating the inner and outer aluminum frames, preventing heat or cold from passing straight through the metal.

Why does this matter so much?

The aluminum window frame conducts heat very easily. Traditional windows transfer hot or cold outdoor temperatures straight into your room—and vice versa. Thermally broken designs¹ use a strategic barrier so heat (or cold) can’t race from outside to inside:

Window Type	Frame Structure	Thermal Conductivity	Condensation Risk	Typical U-value (Uw)
Standard aluminum	Solid metal inside-out	High	High	2.5–3.0 W/m²K
Thermally broken aluminum	Polyamide/PU strip separates frame sides	Low	Low	1.3–1.8 W/m²K

Together with double (or triple) glazing, thermal breaks² elevate both energy savings and everyday comfort—no more icy interior frames or fogged-up glass. At Hoglad, I’ve seen clients across extremes—from chilly New Zealand winters to UAE summers—notice a night-and-day improvement living with thermal break technology.

Are thermally broken windows worth it?

Frustrated by high energy bills or struggling to find windows that actually last? Your investment might pay you back—and then some.

Thermally broken aluminum windows cut energy loss by up to 60%, save on heating and cooling, end condensation issues, reduce noise, and increase durability. Upfront costs are higher, but long-term savings and comfort outweigh the difference.

Is the investment justified?

Let’s break it down:

Benefit	Traditional Aluminum	Thermally Broken Aluminum
Energy Savings3	Low	High (15–20%+ annually)
Condensation Prevention	Poor	Excellent
Sound Insulation	Limited	Strong (esp. w/ double glazing)
Durability (Weather)4	Good	Excellent
Typical Price Difference	–	+15–20%

In Canada, where Emily renovates, heating costs plunge and comfort rises—she no longer puts towels on her sills each winter. Michael, coordinating U.S. multifamily sites, finds fewer callbacks due to water or air leakage. Ahmed’s UAE showroom wins over clients with consistent performance against both dust and evening chill. Leon’s team in New Zealand meets strict H1 building efficiency codes—and buyers see value reflected in project appraisals. Yes, you’ll pay a bit more upfront, but for owners and developers focused on quality, the long-term payoff is clear.

What is a thermal break for aluminum windows?

Ever wondered what exactly is inside your window frame transforming its performance? It’s not just metal—there’s science in the split.

A thermal break is a barrier of low-conductivity material—commonly polyamide or polyurethane—installed between the inside and outside of the aluminum window frame. This layer blocks heat transfer, enhancing insulation and reducing condensation.

How does a thermal break work?

Here’s the underlying principle:

Feature	Standard aluminum	Thermally broken aluminum5
Internal structure	Continuous aluminum	Separated by thermal barrier (polyamide6/PU)
Heat transfer path	Direct, unbroken	Interrupted
Condensation risk	High	Dramatically reduced
U-value improvement	Modest (if any)	Significant

Why polyamide? It’s strong, durable, doesn’t warp under UV or chemicals, and most importantly: It doesn’t conduct heat like metal. Some frames even use glass-fiber reinforced polyamide for better strength. What’s neat is you still get all the slim, modern lines of aluminum—but now with high-end insulation built-in. At Hoglad, our factory’s upgraded polyamide inserts rival European standards for reliability and weather resistance.

How to tell if a window is thermally broken?

Not sure if your window boasts this technology or is just standard aluminum? Here’s how to check—no degree required.

You can identify thermally broken aluminum windows by: (1) Touch-test—frames are never icy inside; (2) Checking the frame cross-section for a plastic insulator; (3) Low U-value (look for Uw < 1.8 W/m²K); (4) Minimal condensation; (5) Manufacturer or product specs clearly stating “thermally broken.”

%[Photo and diagram composite of a person touching their window on a cold day, side-by-side with a frame cross-section highlighting the thermal break strip](https://hogladwindow.com/how_to_identify_thermally_broken_windows/ "How to Identify Thermally Broken Windows")

Quick guides for buyers and pros

Method	What to Look/Do	What It Tells You
Touch test	Feel the frame on a cold morning	Warm? Likely thermal break7; icy? Standard aluminum
Cross-section	Inspect any exposed cutaway or ask for specs	Polyamide/PU insert visible means thermal break
U-value review	Check product label or ask supplier	Uw lower than 1.8 W/m²K is a positive sign
Condensation levels	Look for recurring moisture/ice	Little or none = good break
Manufacturer inquiry	Ask directly; modern exports usually comply	Don’t guess—ask for proof

My tip: If you’re sourcing for a project or renovation, always request product cut sheets or samples before signing contracts—I learned early on that not all suppliers label their frames consistently. At Hoglad, we proudly showcase our thermal break cross-sections, U-values⁸, and international certification so every customer knows exactly what they’re buying.

Ready to Upgrade?

We offer CE-certified, fully customizable double-glazed window systems—delivered globally.
💬 Chat on WhatsApp

Conclusion

Thermally broken aluminum windows powerfully improve insulation, reduce noise, prevent condensation, and raise property value—delivering real comfort and efficiency for those ready to invest in lasting quality.

---
